SCCM 2012 R2: No Source Pull Distribution Point available

4

A few weeks ago I was working with a customer on a global SCCM Project where the use of Pull Distribution Points would be a huge benefit to reduce WAN traffic between some of the major sites.

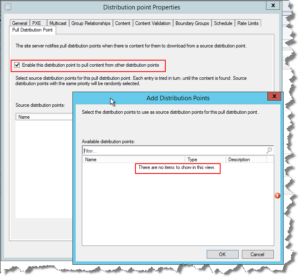

So we ordered a few new (virtual) servers and installed the Distribution Point Role. Everything looked ok, so we moved on and enabled the Pull Distribution Point option, but we couldn’t specify any source for the Pull Distribution Point.

I went back to my lab, where I tried to reproduce this behaivor, but in my lab everything worked just fine.

But my lab was running in HTTP mode and my production was running in HTTPS mode.

After some searching I found this in the docs:

“Although a pull-distribution point supports communications over HTTP and HTTPS, when you use the Configuration Manager console, you can only specify source distribution points that are configured for HTTP. You can use the Configuration Manager SDK to specify a source distribution point that is configured for HTTPS.”

Source: http://technet.microsoft.com/en-us/library/gg712321.aspx#BKMK_DistributionPointConfigurations



Then I started to search for a solution that could help me automate this process for me, and then I found this great script created by an unknown Microsoft PFE, but all credits for the script goes to him Smiley

Source: http://social.technet.microsoft.com/Forums/en-US/72847bfc-c529-449c-a6b3-d7ce6bfcc8bb/how-to-set-an-https-distribution-point-as-a-source-dp-for-pull-dps?forum=configmanagergeneral

PULLDPSOURCE.VBS

Const cSourceDP = "xxxxxxxxxx.domainname.COM"
Const cTargetDP = "xxxxxxxxxx.domainname.COM"
Const cServer = "."
Const cSitecode = "XXX"

 Dim NalPAthArray()
 intsize = 0

 Set loc = CreateObject("WbemScripting.SWbemLocator")
 Set WbemServices = loc.ConnectServer(cServer,"root\SMS\site_" & cSitecode)

 'Connect to the site control file
 Set WbemContext=CreateObject("WbemScripting.SWbemNamedValueSet")

 WbemContext.Add "SessionHandle",WbemServices.ExecMethod("SMS_SiteControlFile","GetSessionHandle").SessionHandle

 'Refresh our copy of the SiteControlFile
 WbemServices.ExecMethod "SMS_SiteControlFile.Filetype=2,Sitecode=""" & cSitecode & """", "Refresh", , , WbemContext


'Retrieve Site Control Item instances
Set WbemInstEnum = WbemServices.ExecQuery("SELECT * FROM SMS_SCI_SysResUse where RoleName='SMS Distribution Point' and NALpath like '%" & cTargetDP & "%'", , , WbemContext)

For each wbemInst in WbemInstEnum
Wscript.echo "Rolename: " & wbemInst.RoleName
wscript.echo "Site Code: " & wbemInst.SiteCode
' Here it breaks:  Microsoft VBScript runtime error: Object not a collection
For Each Prop In wbemInst.Props
if Prop.PropertyName = "IsPullDP" then
wscript.echo "Property Name: " & Prop.PropertyName
wscript.echo "Property Value: " & Prop.value


Prop.value = "1"
Prop.Value1 ="0"
End if
Next

Set clsNALMethods = WbemServices.Get("SMS_NAL_Methods")
clsNALMethods.PackNALPath Array("Display=\\" & cSourceDP & "\"), "MSWNET", "\\" & cSourceDP, Array("SMS_SITE=" & cSitecode),NALPath

For Each Propl in WbemInst.PropLists
if Propl.PropertyListName = "SourceDistributionPoints" then
wscript.echo "Property List Name: " & PropL.PropertyListName
wscript.echo "Value: " & NalPath


ReDim Preserve NalPAthArray(intSize)

NalPAthArray(intSize) = NalPath
intSize = intSize + 1

Propl.values = NalPAthArray
wscript.echo "NalPathArray:
" & Join(NalPAthArray)
End if
Next

Set SCICompPath = wbemInst.Put_(wbemChangeFlagUpdateOnly, WbemContext)
 Next

 'Commit changes to SC
 Set InParams = WbemServices.Get("SMS_SiteControlFile").Methods_("CommitSCF").InParameters.SpawnInstance_
 InParams.SiteCode = cSiteCode
 WbemServices.ExecMethod "SMS_SiteControlFile", "CommitSCF", InParams, , WbemContext

 'Release SC
 WbemServices.Get("SMS_SiteControlFile").ReleaseSessionHandle WbemContext.Item("SessionHandle").Value

 'Next
 Wscript.echo "Done"

/Enjoy.

+Ronni Pedersen

About Author

My name is Ronni Pedersen and I'm currently working as a Cloud Architect at APENTO in Denmark. My primary focus is Enterprise Client Management solutions, based on technologies like AzureAD, Intune, EMS and System Center Configuration Manager. I'm is also a Microsoft Certified Trainer and Microsoft MVP in Enterprise Mobility.

4 Comments

  1. Anders Harder on

    Hmm.. it does not work.

    The script even has a line with this:

    ‘ Here it breaks: Microsoft VBScript runtime error: Object not a collection

    Do you have a fix???

  2. Anders Harder on

    I do not seem to work this script..

    It even says so in the script source code:
    ‘ Here it breaks: Microsoft VBScript runtime error: Object not a collection

    Do you have a work a round?
