How-to: Deploying Microsoft Office 2013 using SCCM 2012


This Step-by-step guide describes how to prepare and add Microsoft Office 2013 Professional Plus to the Application library of System Center 2012 Configuration Manager (SCCM), by using the designated functions for doing this in the Configuration Manager Console interface.

Download the complete guide here in PDF format or read the the guide here. If I later decide to update this guide, I’ll only update the document. Not this blog post.

Prepare Office 2013 for deployment


This procedure describes how to prepare Microsoft Office Professional Plus 2013 to be installed unattended. The aim of this procedure is to create and prepare the installation source folder, for use with System Center 2012 Configuration Manager.

This procedure does not cover:

  • Download the Volume License Edition of Microsoft Office 2013 installation files.


In order for the operator to perform the steps describes below, the following requirements must be in place:

  • The operator must have access to the volume license edition of Microsoft Office Professional Plus 2013.

Process Steps

1. Copy all content from the Microsoft Office 2013 DVD to a source share like: \\SCCM01\Source$\Applications\Microsoft Office Professional Plus 2013 ENU\DT-MSI_x86\
(We need to create a subfolder for each deployment type).

2. Start the Office Customization Tool (OCT), by running Setup.exe /admin, from the source folder. (The OCT is available only with the volume license editions of Office).


3. If required click OK to the User Account Control (UAC) prompt.

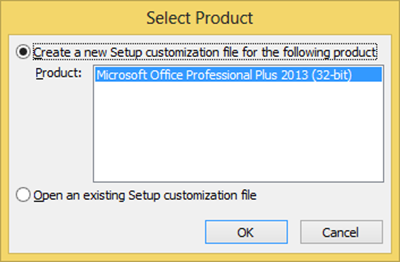

4. Verify that the correct product and version is selected, and click OK.

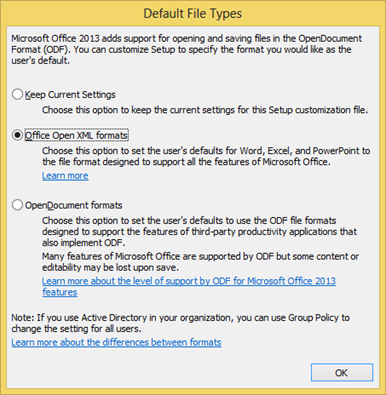

5. In the Default File Types, pop-up, select the format you wish to use. The default is “Keep Current Settings”. In this example, I’ll select Office Open XML formats, and then click OK.


6. In the Microsoft Office Customization Tool wizard, you can customize almost all available settings, but in this example, I’ll only configure a few of these settings, to make the installation unattended, and to provide a simple user experience to users, when they install Office 2013 from the System Center 2012 Application Catalog.

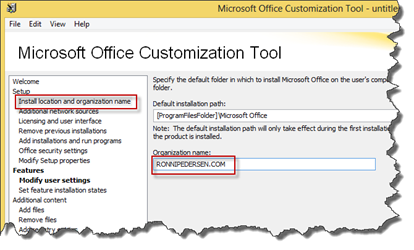

7. Select Install location and organization name, and fill-in your company name.

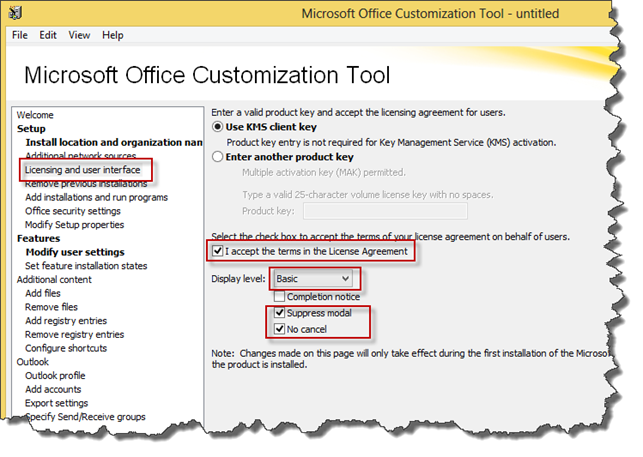

8. Select Licensing and user interface, and select “I accept the terms in the License Agreement”. In the Display level, select Basic, and select both Suppress modal, and No cancel.

Note: If you do not plan to use KMS or Active Directory-Based activation, you should also specify the MAK product key on this page.

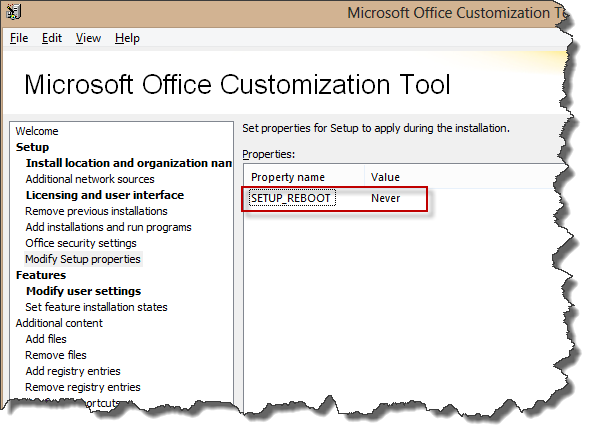

9. Select Modify Setup properties, and click Add…

10. In the Add/Modify Property Value dialog box add the following information, and click OK:


Value: Never

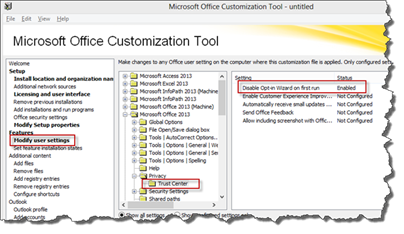

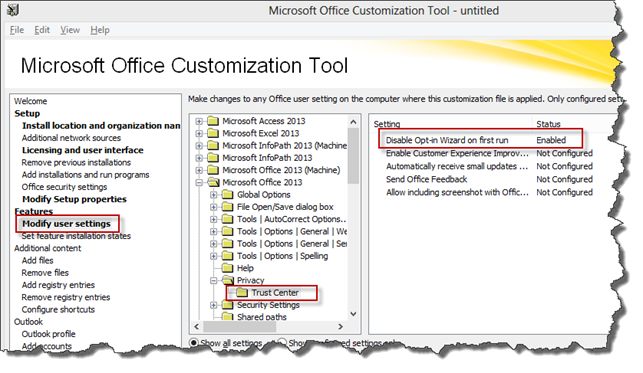

11. To disable the Office 2013 Welcome screen, select Modify user settings, expand Microsoft Office 2013, Privacy and Trust Center. Select Disable Opt-In Wizard on first, and double click on the setting and select Enable.

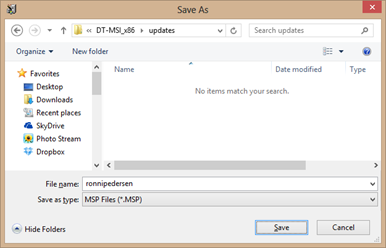

12. That’s it… Click File and then Save, and then save the MSP file in the Updates folder in the source folder.


13. The source folder is now prepared for unattended installation, and if you run setup.exe, from the source folder, the installation should be 100% silent.

Create/import the Application for Office 2013


This chapter describes how to create an application in System Center 2012 Configuration Manager.


In order for the operator to perform the steps describes below, the following requirements must be in place:

  • The operator must have access to a system running the Configuration Manager Administration Console
  • The operator must be logged in with a user account with permissions to create and deploy applications.

Process Steps

1. In the Configuration Manager Console, navigate to Software Library / Overview / Application Management / Applications.

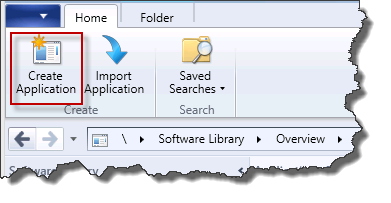

2. In the ribbon menu, click Create Application.

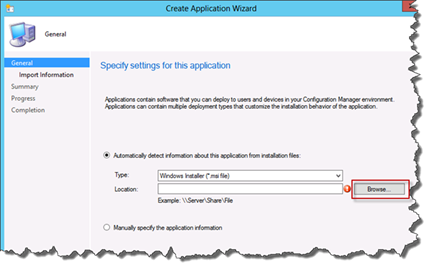

3. In the Create Application Wizard, verify that automatically detect information is selected and that the Type is Windows Installer (*.msi file), and click Browse…


4. Navigate to the source folder (by using the UNC share path). \\SCCM01\Source$\Applications\Microsoft Office Professional Plus 2013 ENU\DT-MSI_x86\ProPlus.WW\, and select the ProPlusWW.msi file, and click Open.
Note: Microsoft Office Professional Plus 2013, should not be deployed as a native MSI file, but by selecting the MSI file when we create the application, things like deployemt type and detection methods are created automatically.


5. On the General page of the Create Application Wizard page, click Next.

6. Verify that the imported information is correct, and that the import was successful, and click Next.

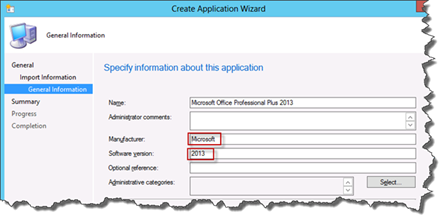

7. On the General Information page, verify that the Name is displayed like you would prefer to see it in the Console. Fill-in the Manufacturer (Microsoft), and the Software version (2013).


8. In the installation program, delete the default value (msiexec.exe /i “ProPlusWW.msi” /q), and type Setup.exe.


9. Verify that Install behavior is configured to Install for System, and click Next.

10. On the Summary Page, click Next.

11. On the Completion page, verify that the application was imported successful, and click Close.

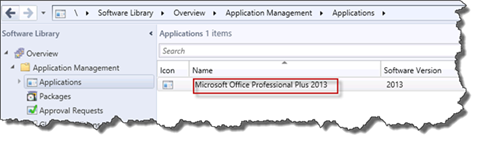

12. In the Configuration Manager console, select Microsoft Office Professional Plus 2013.

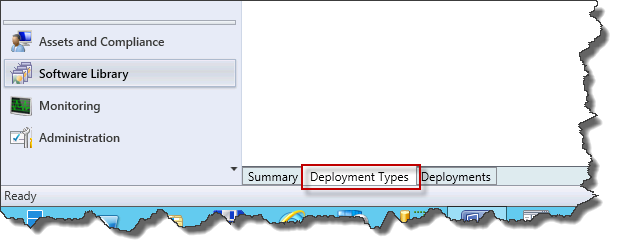

13. Select the Deployment Types tab.

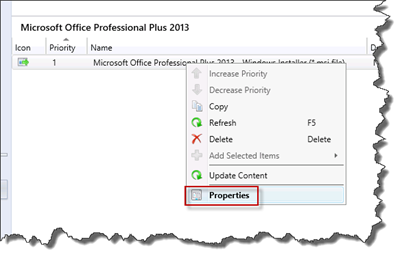

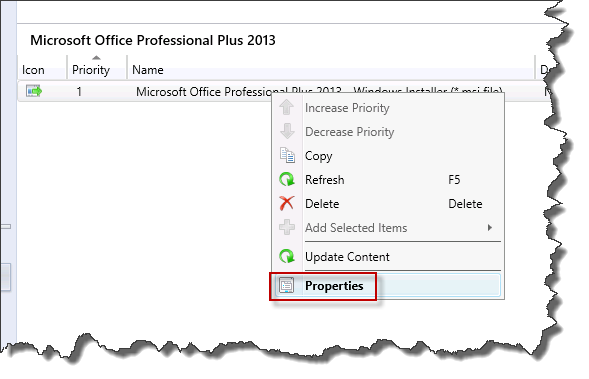

14. Right-click the deployment type Microsoft Office Professional Plus 2013 – Windows Installer (*.msi file), and select Properties.

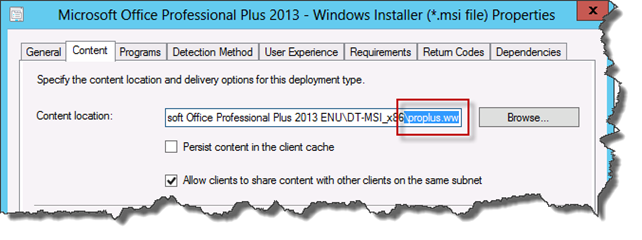

15. Select the Content tab, and change the content location to \\SCCM01\Source$\Applications\Microsoft Office Professional Plus 2013 ENU\DT-MSI_x86\, by removing the “\proplusww” in the end of the pre-configured location.

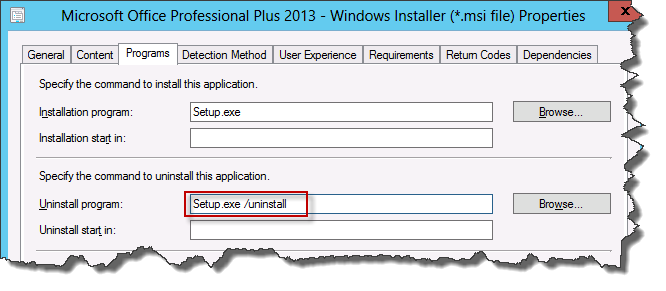

16. Select the Programs tab and change the Uninstall program command to Setup.exe /uninstall.

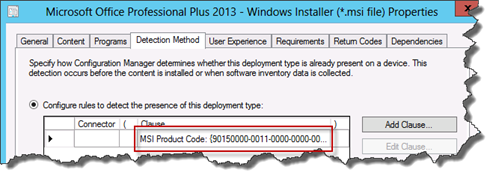

17. Select the Detection Method tab, and verify that a detection method for the MSI Product Code had been created.


18. Select the Requirements tab, and click Add…

Note: You can create lots of requirement rules, but in this example, I’ll provide three common examples on requirement rules, you can use to target the right deployment type for the right system.

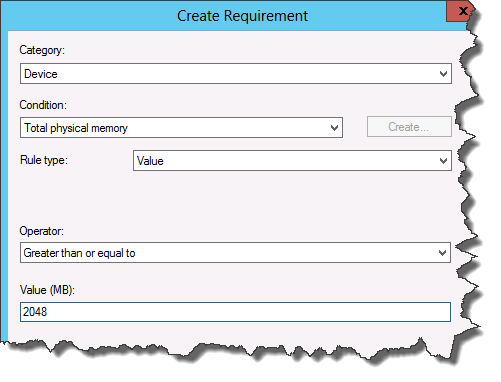

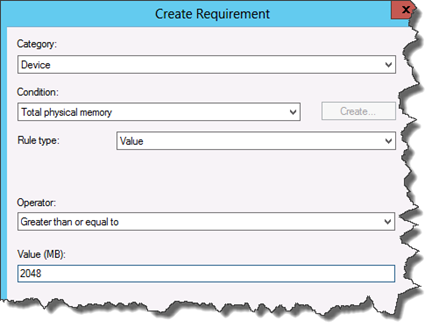

19. Create a Requirement rule with the following settings, and click OK.

a. Category = Device

b. Condition = Total physical memory

c. Rule Type = Value

d. Operator = Greater than or equal to

e. Vaule (MB)= 2048


20. Click Add..

21. Create a Requirement rule with the following settings, and click OK.

a. Category = Device

b. Condition = Disk Space

c. Rule Type = Value

d. Select local logical drive = System drive

e. Operator = Greater than or equal to

f. Vaule (MB)= 2000


22. Click Add…

23. Create a Requirement rule with the following settings, and click OK.

a. Category = Device

b. Condition = Operating System

c. Rule Type = Value

d. Operator = One of

Windows 7

Windows 8


24. Click OK.


Deploy Microsoft Office 2013


This chapter describes how to deploy Microsoft Office Professional Plus 2013 using System Center 2012 Configuration Manager.


In order for the operator to perform the steps describes below, the following requirements must be in place:

  • The operator must have access to a system running the Configuration Manager Administration Console
  • The operator must be logged in with a user account with permissions to create and deploy applications.

Process Steps

1. In the Configuration Manager Console, navigate to Software Library / Overview / Application Management / Applications.

2. Select Microsoft Office 2013 Professional Plus 2013.


3. In the ribbon, Select the Home tab, and click Deploy.

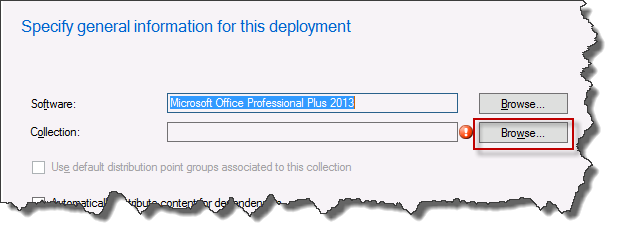

4. On the General Page, click Browse… to select the target collection.

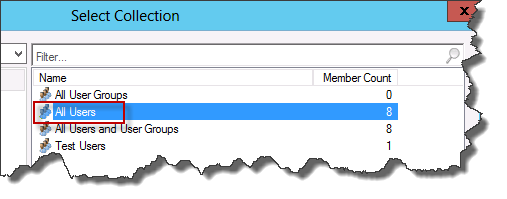

5. Select All Users, and click OK.


6. Click Next.

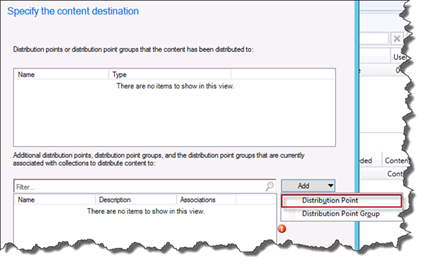

7. On the Content tab, click Add and then Distribution Point.


8. Select the Distribution Point, and click OK.


9. Click Next.

10. Complete the wizard, by Next 6 times and then Close.

End User Experience


This chapter describes the end user experience when deploying Microsoft Office Professional Plus 2013 using System Center 2012 Configuration Manager.


In order for the operator to perform the steps describes below, the following requirements must be in place:

  • The operator must have access to a Windows 7 or Windows 8 client system with the System Center 2012 Configuration Manager Client Agent installed.
  • The Windows Client must be joined to the same Active Directory forest as the Configuration Manager Site Server
  • The operator must be logged in with a domain user account that is a member of the All Users Collection in System Center 2012 Configuration Manager

Process Steps

1. Login to the Windows client, and start Internet Explorer.

Note: If you are using a Windows 8 client, you should start Internet Explorer from the Desktop. Not from the Modern UI Interface.

2. Open http://sccm01/CMApplicationCatalog.

3. Select Microsoft Office Professional Plus 2013, and click Install.


4. On the Application Installation pop-up notification click YES.

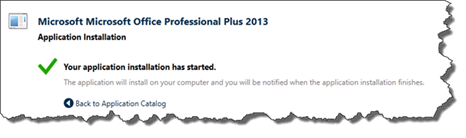

5. Verify that the application installation has started, and wait for the Installation to complete.


6. When the software installation is completed, click OK.


7. Start Microsoft Word, to verify that Microsoft Office has been installed successfully, and that the settings configured in the Office Customization Wizard, had been applied successfully.

The latest version of this document can be downloaded here:
